Analytical Mill A 11 Basic

Harga	Call Us

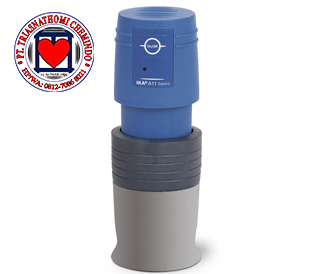

Deskripsi Produk	A 11 basic Analytical mill Batch mill for 2 different grinding procedures: Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery). Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not incl. with delivery). Moist and gluey materials can be pulverized by adding water Grinding chamber made of Tefcel (PTFE, glass fiber-reinforced) with stainless steel inlet (1.4571), useful volume 80 ml (incl. with delivery). For embrittlement of grinding materials with liquid nitrogen in the grinding chamber Optionally, a 250 ml grinding chamber is available Technical Data: Process type batch Operating principle cutting/impact Motor rating input 160 W Motor rating output 100 W Speed max. 28000 rpm Circumferential speed max. 53 m/s Useable volume max. 80 ml Feed hardness max. 6 Mohs Feed grain size max. 10 mm Material beater/cutter stainless steel 1.4034 Material milling chamber stainless steel 1.4571 Power-ON time 1 min Power-OFF time 10 min Mill feed can be cooled in milling chamber with dry ice yes Mill feed can be cooled in milling chamber with liquid nitrogen yes Dimensions (W x H x D) 85 x 240 x 85 mm Weight 1.5 kg Permissible ambient temperature 5 - 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 43 Voltage 220 - 230 / 100 - 115 V Frequency 50/60 Hz Power input 160 W Accessories
