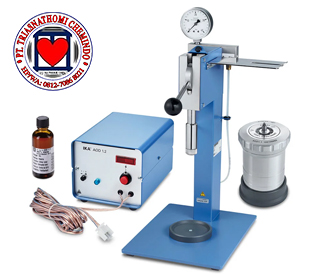

Deskripsi Produk | AOD 1 Decomposition systemThe AOD 1 is used for oxidative decomposition of solid and liquid organic and partially inorganic samples under pressure in a closed system. The system consists of:
- AOD 1.1 Decomposition vessel, C 48 Oxygen station, AOD 1.2 External ignition unit, AOD 1.11 Control standard (50 ml)
- Quantitative decomposition of all halogens, sulfur, as well as volatile metals, e.g. As and Hg
- Absorption of the combustion products in an aqueous medium
- Catalytic support of the oxidation process with auto-regenerating catalytic inner surface of the decomposition vessel
- Pressure vessel of high-grade stainless steel
- Decomposition temperature up to 1200 °C
- Max. operating pressure during decomposition 195 bar
- Decomposition time < 3 min
- The decomposition vessel can be changed over to use combustible crucibles C 14
- Control standards for Cl, S ( AOD 1.11)
- Introduction of the combustion gases into the absorption solution via venting station C 7030
Principle and function are based on the method of the combustion in the bomb calorimeter and validated according
- DIN 51577, part 1 dt. 1982 other relevant validations are:DIN / EN 14582, determination characteristics of waste, halogen and sulfur content
- DIN 51527, Testing of solid samples, determination of chlorine content
Technical Data
Decomposition time
|
3 min
|
Core temperature max.
|
1200 °C
|
Pressure max.
|
195 bar
|
Chamber volume
|
210 ml
|
Oxygen operating pressure
max.
|
40 bar
|
Dimensions (W x H x D)
|
400 x 480 x 260 mm
|
Weight
|
12.5 kg
|
Permissible ambient
temperature
|
5 - 40 °C
|
Permissible relative
humidity
|
80 %
|
Protection class according
to DIN EN 60529
|
IP 20
|
Voltage
|
230 / 115 V
|
Frequency
|
50/60 Hz
|
Power input
|
45 W
|

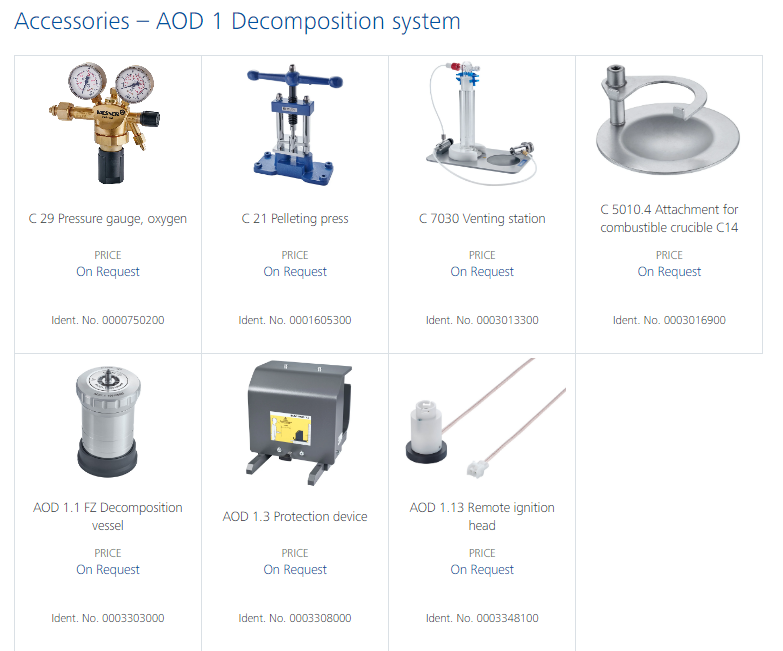

Accessories
|
