C 200C 200-System consists of the following
components: - Measuring cell C 200
- Decomposition vessel C 5010
- Oxygen filling
station C 248
- Consumables for calibrations and installation
Space-saving and low
cost combustion calorimeter for determing gross calorific values of liquid and
solid samples. Validation according to DIN 51900,ISO 1928, ASTM D240, ASTM D4809,
ASTM D5865, ASTM D1989, ASTM D5468, ASTM E711. Suitable for teaching and
training, as well (f.e tecnical- schools, universities) and for industriell laboratories
with less analyses.. Manual handling for water and oxygen filling. Four different
working methods, isoperibolic, dynamic, manual, time controlled makes possible
an ideal adjustment of different operating tasks. Clear and easily explained display
which is simply to use . With an external power pack, "world tension
useable" from 100 - 240 V AC, 50/60 Hz. The operating voltage of the calorimeter
is 24 V DC low- voltage. Friendly in aftersales Manual ( teaching mode): ignition
and end of the measurement will be done by the operator himself; the
temperature increase will be indicated at the display each minute. All calculations
have to be done manually. At the other three modes ignition and calculation of
the gross calorific value will be done automatically. The gross calorific value
will be shown on the display. Acid corrections and calculations of the net
calorific value have to be done manually. The modes have different measuring
times: Isoperibolic: approx: 17 min. Dynamic : approx. 8 min Manual : approx. 17
min (depend on the operator) Time controlled : 14 min The decomposition vessel can
be equiped in to use an combustible crucibles C 14 (accessory C 5010.4
attachment is neessary) User-friendly software C 6040 Calwin for controlling the
calorimeter and administration of measuring data(asseccory). Transfer of the
datas to Excel or Word are possible Up to eight IKA measuring cells can be
controlled by a single PC, using a multiserial plug in card PCI 8.2 (accessory) Technical Data
Measuring range max.
|
40000 J
|
Measuring mode dynamic 25°C
|
yes
|
Measuring mode isoperibol 25°C
|
yes
|
Measuring time dynamic approx.
|
8 min
|
Measuring time isoperibol approx.
|
17 min
|
Reproducibility dynamic (1g
benzoic acid NBS39i)
|
0.1 %RSD
|
Reproducibility isoperibol (1g
benzoic acid NBS39i)
|
0.1 %RSD
|
Working temperature max.
|
25 °C
|
Temperature measurement
resolution
|
0.0001 K
|
Interface printer
|
Centronix
|
Interface PC
|
RS232
|
Decomposition vessel C 5010
|
yes
|
Works according to DIN 51900
|
yes
|
Works according to DIN EN ISO
1716
|
yes
|
Works according to DIN EN ISO
18125
|
yes
|
Works according to DIN EN 15400
|
yes
|
Works according to DIN CEN TS
14918
|
yes
|
Works according to DIN CEN/TS
16023
|
yes
|
Works according to DIN SPEC 19524
|
yes
|
Works according to ASTM D240
|
yes
|
Works according to ASTM D4809
|
yes
|
Works according to ASTM D5468
|
yes
|
Works according to ASTM D5865
|
yes
|
Works according to ISO 1928
|
yes
|
Works according to GOST Certified
|
yes
|
Dimensions (W x H x D)
|
400 x 400 x 400 mm
|
Weight
|
28.912 kg
|
Permissible ambient temperature
|
20 - 25 °C
|
Permissible relative humidity
|
80 %
|
Protection class according to DIN
EN 60529
|
IP 20
|
RS 232 interface
|
yes
|
Voltage
|
100 - 240 V
|
Frequency
|
50/60 Hz
|
Power input
|
120 W
|

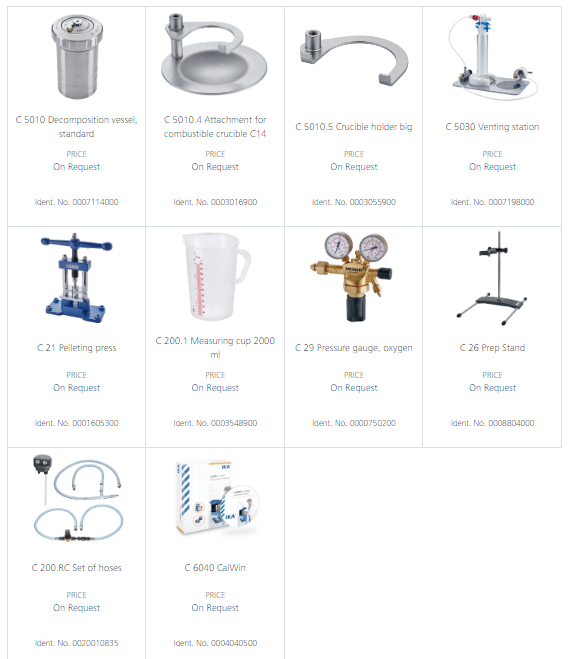

Accessories
|
