IKA Plate (RCT digital)
The IKA Plate (RCT digital) has a round top made of aluminum
alloy. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from
50-1500rpm.
Strongly standing by its product and technology, IKA is
offering a lifetime warranty on the magnetic stirrer – unparalleled in the
industry; scientists can focus on their experiments with a reliable stir plate.
Some of the features are: IKA emphasizes ease-of-use by
design simplicity: reduced forms and operating elements meet the modernity of
smartphones: IKA not only focuses on hardened glass because of visibility,
chemical resistance and safety, it also optically changes the game of a
magnetic stirrer with a glass surface. The IKA Plate (RCT digital) improves
over time with regular firmware updates. Using Alnico magnetic technology, the
IKA Plate (RCT digital) achieves excellent temperature stability and high
residual induction. It also provides for maximum vortex. The integrated timer and counter function
supports the control of kinetics and sensitive reactions; the IKA SmartTemp®
function protects users intelligently and predictably.

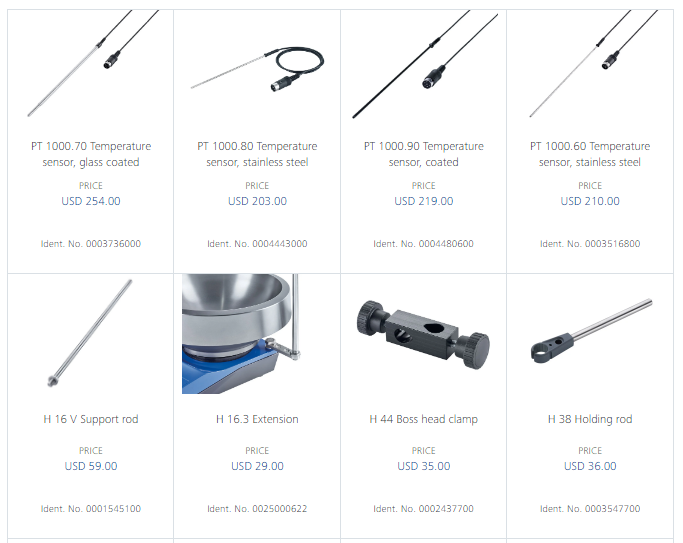

PT 1000.60 temperature sensor included in the scope of
delivery.
Technical Data
|
Number of stirring positions
|
1
|
|
Stirring quantity max. per
stirring position (H2O)
|
20 l
|
|
Motor rating output
|
9 W
|
|
Direction of rotation
|
right / left
|
|
Speed display set-value
|
LCD
|
|
Speed display actual-value
|
LCD
|
|
Speed control
|
Turning knob
|
|
Speed range
|
50 - 1500 rpm
|
|
Setting accuracy speed
|
10 rpm
|
|
Stirring bar length
|
30 - 80 mm
|
|
Self-heating of the set-up plate
by max. stirring (RT:22°C/duration:1h)
|
13 +K
|
|
Heat output
|
600 W
|
|
Temperature display set-value
|
LCD
|
|
Temperature display actual-value
|
LCD
|
|
Temperature unit
|
°C / °F
|
|
Heating temperature range
|
Room temp. + device self heating - 310 °C
|
|
Heat control
|
Turning knob
|
|
Temperature setting range
|
0 - 310 °C
|
|
Temperature setting resolution of
heating plate
|
1 K
|
|
Connection for ext. temperature
sensor
|
PT1000, ETS-D5, ETS-D6
|
|
Temperature setting resolution of
medium
|
1 K
|
|
Adjustable safety circuit
|
50 - 370 °C
|
|
Set-up plate material
|
Aluminium alloy
|
|
Set-up plate dimensions
|
Ø 135 mm
|
|
Automatic reverse rotation
|
yes
|
|
Intermittent mode
|
yes
|
|
Viscosity trend measurement
|
yes
|
|
Timer
|
yes
|
|
Sensor in medium detection (Error
5)
|
yes
|
|
Speed deviation (no load,nominal
voltage, at 1500rpm + 25 °C)
|
2 ±%
|
|
Heating rate (1l H2O in H1500)
|
6.5 K/min
|
|
Heat control accuracy of heating
plate (at 100°C)
|
5 ±K
|
|
Heat control accuracy with ext.
PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)
|
0.5 ±K
|
|
Heat control accuracy with ETS-D5
(500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)
|
0.5 ±K
|
|
Heat control accuracy with ETS-D6
(500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)
|
0.2 ±K
|
|
Dimensions (W x H x D)
|
160 x 85 x 270 mm
|
|
Weight
|
2.4 kg
|
|
Permissible ambient temperature
|
5 - 40 °C
|
|
Permissible relative humidity
|
80 %
|
|
Protection class according to DIN
EN 60529
|
IP 42
|
|
RS 232 interface
|
yes
|
|
USB interface
|
yes
|
|
Voltage
|
220 - 230 / 115 / 100 V
|
|
Frequency
|
50/60 Hz
|
|
Power input
|
650 W
|
|
Power input standby
|
1.6 W
|
Tecnical Data
|
