Solvent Extractor Rot-X-Tract-LC

Harga Call Us

Deskripsi Produk

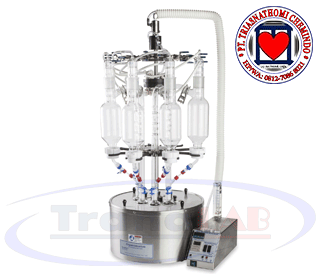

Solvent Extractor Rot-X-Tract-LC

The ROT-X-TRACT-LC is designed to accommodate up to eight (8) Corning Accelerated One-Step apparatuses. The Corning Accelerated One-Step extraction apparatus combines continuous liquid-liquid extraction and concentration into one step. A cold-finger condenser is used to reduce overall height to accommodate traditional laboratory hood specifications; however Allihn condensers can be substituted per customer request.

The hydrophobic membrane allows the organic solvent to circulate through the 1 liter sample bottle continuously until the extraction is complete. By incorporating a stop-cock assembly and 3-ball Snyder column, the Corning One-Step extractor can both extract desired analytes as well as evaporate solvent from the end by-product within the same cycle.

The Corning One-Step extractor comes with an electronic side control box which enables the operator to program specific bath temperatures and time cycles to stay in compliance with the designated methodologies.

Advantages:

Multiple simultaneous extractions: extract and concentrate up to eight samples simultaneously
Precise controls: digital timer and heat controls
Fewer connections: one water supply line in, one drain line out
Organomation vacuum insulated concentrator tubes keep delicate samples safe
Water bath is gentler than jacketed concentration tubes in traditional set-up

Standard Features:

Stainless steel construction
Stepped bath rim and cover disk seals steam chamber
Each condenser water line attached to centrally located water manifold
Side control box
Water flow meter
Laboratory grade materials stand up to organic solvents

Optional Features:

All associated glassware
Intrinsically safe type Z purged bath (Option Code -Z)
240V wiring and plug (Option Code -2)

Glassware Features:

Stop cock to switch to sample concentration after extraction is complete
1 L sample bottle
J-shaped Snyder column
Hydrophobic Corning membranes (sold separately)
In-line KD flask for optimum heat transfer
Vacuum insulated concentrator tube

Specification

Instrument Catalog Number	11318
Instrument Name	Corning Accelerate One-Step Extractor
Max No. of Samples	8
Bench Space	24x19x42 in
w x d x h	61x48x107 cm
Attached Control Box for Power & Timer	Standard
Glassware 1000ml	GS3380
Extractor Type & Size	Corning One-Step 1000 ml
Solvent Flask Type & Size	In-Line KD 100 ml
Concentrator Tube	Insulated Tip
Type & Size	10 ml 19/22
Snyder Column Type	J Tube
Condenser Type	Cold Finger 45/50
Solvent Collection Flood Extractor	Standard
Hydrophobic Membrane	Standard
Water Bath Catalog Number	B3101
Bath Model Number	14169
Bath Inside Dimensions	16.0x 8.5 in
Diameter x Depth	40.6x21.6 cm
Bath Outside Dimensions	24x19x10 in
w x d x h	61x48x25 cm
Water Flow Meter	0-3.0 lpm
Heaters Total Watts	1400 w
Bath Temperature Range	30 - 100 C
Bath Temperature Accuracy	+/- .5 C

Application

Highlighted Application:

EPA Method 8280B: Polychlorinated Dibenzo-p-Dioxins (PCDDs) and Polychlorinated Dibenzofurans (PCDFs) by High-Resolution Gas Chromatography/Low-Resolution Mass Spectrometry (HRGC/LRMS)

This SW-846 method is used for the detection and quantitative measurement of PCDDs and PCDFs in water, soil, fly ash, and chemical waste samples. EPA Method 8280B defines separate extractions procedures for water and solid samples. Water samples are extracted using methylene chloride in a liquid-liquid extractor. The ROT-X-TRACT-LC uses the Corning One-Step extractor to seamlessly extract and concentrate aqueous samples using methylene chloride. The ROT-X-TRACT-LC is capable of extracting 8 samples at once. Each sample is extracted and concentrated into a vacuum insulated concentrator tube which can be easily removed for further sample processing and analysis after extraction.

Other Applications:

EPA Method 608
EPA Method 625
EPA Method 680

For a complete list of methods involving solvent extraction, please visit our Applications Page

Organomation instruments are valuable to sample preparation for research and testing with applications in fields such as:

Environment
Agriculture
Food and Beverage
Medicine
Quality Assurance
Forensics
Government
Academia
Oil and Grease

Accessories

P1332: O-rings for S-EVAP/RXT water manifold
GA3446C-20: Membranes Corning for Accelerated One-Step extractor, pkg of 20
All associated glassware
Bath cover disks
