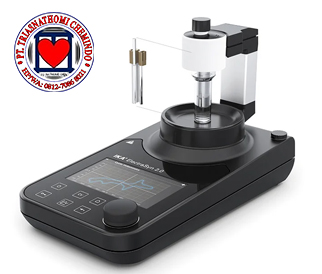

ElectraSyn 2.0 pro

Harga	Call Us
Deskripsi Produk	ElectraSyn 2.0 pro Package The ElectraSyn 2.0 pro package includes: ElectraSyn 2.0 package CV Kit: CV glassy carbon electrode, CV reference electrode, Platinum plated electrode. Accessories are also available, including a carousel which enables six reactions in parallel, electrodes of various materials and sizes, and vials from 1 to 20 mL. The IKA ElectraSyn App (available for both iPhone and Android) enables reaction and CV experiment monitoring, data transmitting, and various other functions. ElectraSyn is a device that improves over time through regular software updates. Technical Data Nominal voltage (input) 48 VDC Current max. (input) 1500 mA Voltage output (electrode) 30/10 V Current output (electrode) 100 mA Motor rating output 9 W Speed range 50 - 1500 rpm Setting accuracy speed 10 rpm Stirring quantity max. per stirring position (H2O) 0.1 l Stirring bar length 8 - 16 mm Speed control Turning knob Display TFT Output current resolution 0.1 mA Output voltage resolution 0.01 V Current measuring resolution 0.1 mA Voltage measuring resolution 0.1 V Current measuring accuracy 0.1 ±mA Voltage measuring accuracy 0.01 ±V Dimensions (W x H x D) 130 x 150 x 250 mm Weight 3.55 kg Permissible ambient temperature 5 - 50 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 40 USB interface yes Voltage 100 - 240 V Frequency 50/60 Hz Power input 39.84 W Power input standby 5 W DC Voltage 48 V= Current consumption 750 mA Accessories
